Digital Band5 850MHz Mobile Phone Signal Repeater Selective Band with WiFi Control

Basic Info.

Model NO.	AS-BS-C
Standard	Standard
Lightning Protection	With Lightning Protection
Certification	ISO, RoHS, CE
Condition	New
Frequency	Down 824-849MHz,up 869-894MHz
Interface	SMA/Female
Booster Bandwidth	Wide Range,Supports From 0.2 to 20MHz Bandwidth a
Network	2g,3G, Voice
Country of Origin	China
Gain	70dB
Output Power	up to 20dBm
Coverage Range	up to 300 Square Meters
WiFi Contronal	Done
Transport Package	520*240*160mm
Specification	Size: 165*115*35mm, Weight: 1.3kg
Trademark	ATNJ
Origin	Shenzhen
HS Code	8543709200
Production Capacity	10000/Per Month

Product Description

Products Spect:

Model No :AS-BS-C
With ALC AGC Function Can control gain automatically. Avoid base station interference (Band 5) 850MHz -- Uplink frequency: 824-849MHz/Downlink frequency :869-894MHz Network support :2G,3G Gain :70±2dB Power Supply :AC110V~220V;DC+5V/2A Connector Type: SMA-FWide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted by Wifi(Customized)Different kind of frequencies digital band selective for your choice:Different kinds of frequencies for your choice: Band 28:Uplink : 703 - 748 MHz Downlink : 758 - 803 MHzBand 5 : Uplink : 824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available ) Band 8: Uplink: 880-916 MHz Downlink: 925-960MHz
Band 3 : Uplink : 1710 - 1785 MHz Downlink : 1805 - 1880 MHz Band 2 : Uplink : 1850 - 1910 MHz Downlink : 1930 - 1990 MHz Band 1 : Uplink : 1920 - 1980 MHz Downlink : 2110 - 2170 MHz.......etc.

Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations.

Single Band Repeater with AGC/MGC
Model	AS-BS-C
Frenquecy Range	UplinK:824-849MHz Downlink:869-894MHz
Working System	Band5 CDMA 850MHz
Gain	70dB
Device Output Power	17-20dBm
Bandwidth	Wide Range,Supports from 0.2 to 20MHz bandwidth adjusted(Customized)
Ripple in Band	≤4dB
Noise Figure @ Max.Gain	≤6dB
V.S.W.R	≤2dB
MTBF	>50000Hours
Power Supply	AC110V~220V;DC+5V/2A
Power Comsumption	<20W
Impedance Matching	50ohm
Mechanical Specification
RF Connector	SMA/F
Cooling	Heatsink Convection Cooling
Dimension	170*130*26(mm)
Net Weight	0.35KG
Installation Type	Wall Installation or Desk
Environment Conditions	IP40
Origin	Shenzhen
Operating Temperature	-10°C~55°C

Item Descrption


Selling Point

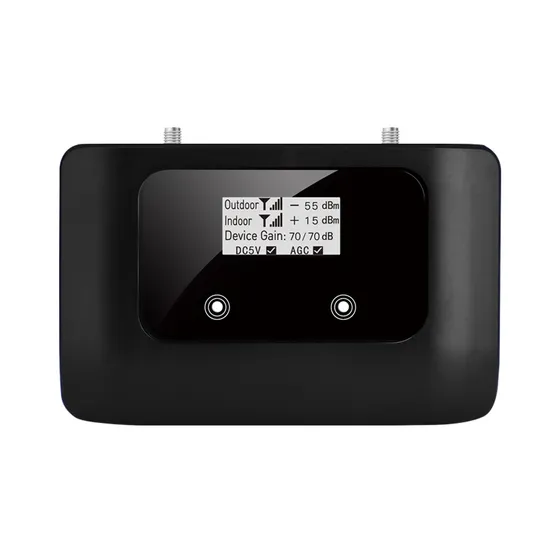

*Intelligent to guide the installation with LCD .
*Real time display the signal strength .
*Automatic dormancy when no user make the calling .
*Automatic alarm when installation mistake and provide the according solution .
*Automatic adjust the system gain to avoid the repeater self-excitation .
*Initiative reminding when the device was damaged .
*Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
*Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
*With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
*A variety of appearance customization.

Applications:

To expand signal coverage or fill signal blind area where signal is weak or unavailable.

Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …

Company introduction

Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintains high-speed development.

Meanwhile, the Up-to-date facilities and technology end sure the business long-term development. With the rapid development of the company, ATNJ moved to Guangming District, Shenzhen in 2016 with a bigger factory over 2800sqm and over 50 workers.

In its stage of rapid development, ATNJ advertised its products by attending trade exhibitions oversea, cooperating with many platforms like Made-in-China, ******, Global Sources and so on. Especially, ATNJ attended Mobile World Congress in Spain, which made ATNJ well known in the world and through MWC, ATNJ started to cooperate with many oversea companies.

Nowadays, ATNJ not only produces and develops high-quality home use signal booster and high power wireless repeater, but also expands its business scope to cooperate with signal operators, provide signal coverage solution for large area like residential area, office building, supermarket, underground garage and rural areas.

With the populization of signal repeater, users have more requirements for the functions of the signal repeater. In 2020, ATNJ developed smarter digital module signal repeater with WIFI connection monitoring function, with which users could control the signal repeater and watch the siganl repeater working situation with their mobile phone. Signal repeaters with WAN connection/Bluetooth connection/USB connection were developed at the same time.

In 2021, 5G signal booster was developed and put into Chinese market successfully. In addition, ATNJ starts to upgrade the signal booster from analog module to digital module, with which the products (micro power signal booster, wireless signal repeater, Indoor Signal Distribution System) could be operated and controlled with WIFI connection, WAN port, USB port and SIM card.

What's more, more functions are equipped in our products, like band select, sub bands, OLED screen display, MGC. With the progress of science and technology of ATNJ, easier use and more functional signal boosters have being developed.

We are manufacturer, and have our own factory.

FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.

Automatic dormancy when no user make the calling.
Automatic alarm when installation mistake and provide the according solution.
Automatic adjust the system gain to avoid the repeater self-excitation.
initiative reminding when the device was damaged.
